Fully Isolated Converter

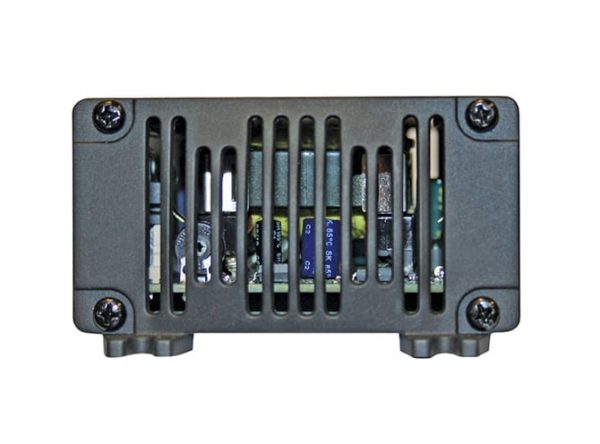

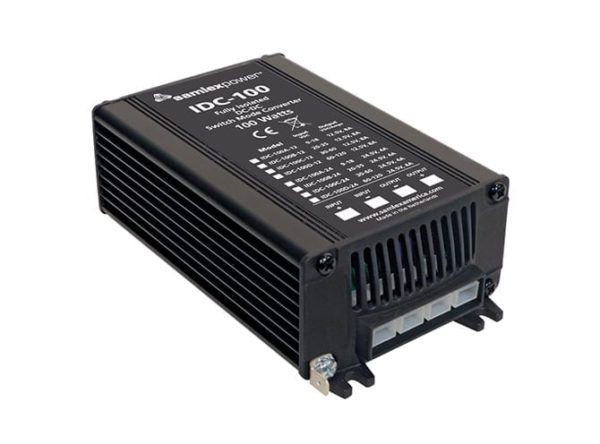

IDC-100C-12



IDC-100 series is a complete line of high efficiency 100 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-100C-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 30-60 Volts and rated output current of 8 Amps (at 60 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with ¼” push-on flat blade “quick disconnect” connectors. IDC-100C-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI) and EN50082-1 (for EMC).



2 Year Limited Warranty

Description

Features

  • Fully Isolated
  • Short Circuit Protected
  • Current Limited

Specifications

  • Input: 30-60 VDC
  • Output: 12.5 VDC
  • Amps: 8 Amps
  • Weight: 1.2 (lbs)
  • Weight: 0.54 (kg)
  • Dimensions: 6 x 3.5 x 1.9 (in)
  • Dimensions: 15.2 x 8.9 x 4.8 (cm)

WARNING: Cancer and Reproductive Harm –
www.P65Warnings.ca.gov – State of California only.

Downloads

Applications

  • Earth moving equipment
  • Heavy trucks
  • Buses
  • Marine vehicles
  • CB radios
  • 12 Volt lighting systems
  • AM/FM sound systems
