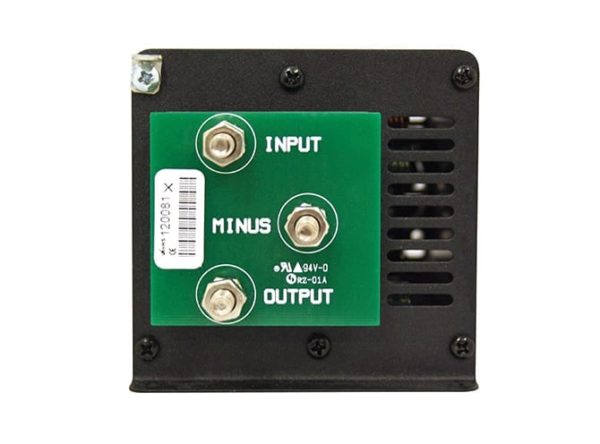

24 VDC-13.8 VDC Converter

SDC-60



This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 60 Amps. The SDC-60 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overload, over-heating, reverse polarity and over-voltage protection.



2 Year Limited Warranty

Description

Features

  • Advanced switchmode design
  • Mount in almost any location
  • Compact and light weight
  • Reverse polarity protection
  • High efficiency
  • Overvoltage protection
  • Short circuit protection

Specifications

  • Input: 20-35 VDC
  • Output: 13.8 VDC
  • Amps: 60 Amps
  • Weight: 2.8 (lbs)
  • Weight: 1.27 (kg)
  • Dimensions: 5.5 x 3.5 x 3.75 (in)
  • Dimensions: 14 x 8.9 x 9.5 (cm)

WARNING: Cancer and Reproductive Harm –
www.P65Warnings.ca.gov – State of California only.

Downloads

Applications

  • Earth moving equipment
  • Heavy trucks
  • Buses
  • Marine vehicles
  • CB radios
  • 12 Volt lighting systems
  • AM/FM sound systems
  • Communications
